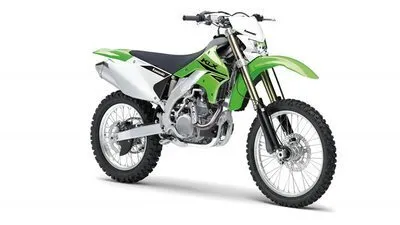

Kawasaki Offroad
KLX450R
OFF-ROAD RACER
Colours
Enquire for price
Talk to sales(03) 5133 8060
Authorised serviceKawasaki service agent
Enduro riders who value true four stroke off-road performance choose the KLX450R. Power, performance and control over the whole distance plus electric start and performance components combine to deliver a fast and usable total package built for the enduro adventure.
POWER
| Engine | 4-stroke Single |
|---|---|
| Displacement | 449 cm3 |
| Bore x Stroke | 96.0 × 62.1 mm |
| Compression Ratio | 12.0:1 |
| Valve System | DOHC, 4 valve |
| Fuel System | Carburettor: Keihin FCR40 |
| Ignition | Digital |
| Starting | Electric, primary kick |
| Cooling | Liquid-cooled |
| Lubrication | Forced lubrication, semi-dry sump |
| Transmission | 5-speed, return |
| Primary Reduction Ratio | 2.727 (60/22) |
| Gear Ratio: 1st | 2.167 (26/12) |
| Gear Ratio: 2nd | 1.533 (23/15) |
| Gear Ratio: 3rd | 1.188 (19/16) |
| Gear Ratio: 4th | 0.950 (19/20) |
| Gear Ratio: 5th | 0.810 (17/21) |
| Final Reduction Ratio | 3.846 (50/13) |
| Clutch | Wet multi-disc, manual |
| Final Drive | Chain |
| Frame | Perimeter, aluminium |
| Front Suspension | 48 mm upside-down AOS-type telescopic fork 22-way 20-way |
| Rear Suspension | Uni-Trak 22-way (low-speed), 2-turns or more (high-speed) 22-way Fully adjustable |
| Front Wheel Travel | 305mm |
| Rear Wheel Travel | 315mm |
| Rake | 28? |
| Trail | 122mm |
| Steering Angle (L/R) | 42? / 42? |
| Front Tyre | 80/100-21M/C 51P |
| Rear Tyre | 120/90-18M/C 65P |
| Front Brake/s | Single semi-floating 250 mm petal disc |
| Front Caliper/s | Dual-piston |
| Rear Brake | 240 mm petal disc |
| Rear Caliper | Single-piston |
| Dimensions (Lx Wx H) | 2175 × 820 × 1250 |
| Overall Length | 2175 |
| Overall Width | 820 |
| Overall Height | 1250 |
| Wheelbase | 1480 |
| Road Clearance | 315 |
| Seat Height | 935 |
| Curb Mass | 126 kg |
| Fuel Capacity | 8L |
