TERYX S LE
Kawasaki Side by Side

TERYX S LE

YOUR WORLD. YOUR ADVENTURE.

Colours

Enquire for price
Talk to sales(03) 5133 8060
Authorised serviceKawasaki service agent

Pack Heavy

272 kg cargo bed capacity allows you to bring all your equipment, gear, supplies and anything else you need with you on all your outdoor adventures.

Strong & Capable

With a towing capacity of up to 590 kg, hauling heavy loads across rugged terrain is no problem.

Smooth & Responsive

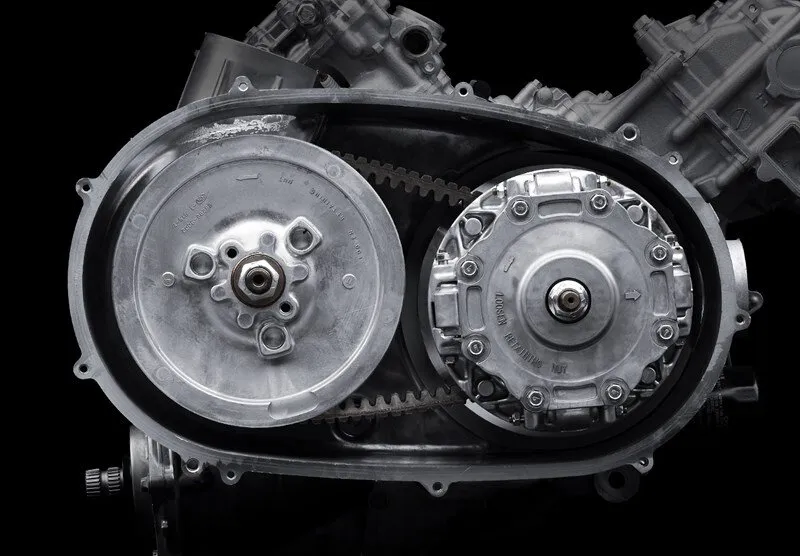

A Continuously Variable Transmission (CVT) with centrifugal clutch maintains belt tension for instant throttle response and improved belt life. The CVT’s centrifugal clutch enables positive belt engagement providing confidence-inspiring automatic engine braking performance on challenging descents.

Premium Suspension

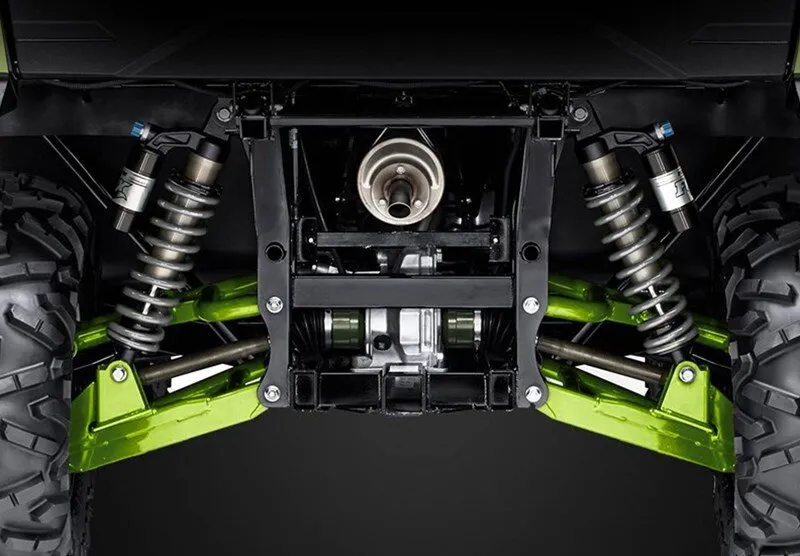

Off-road adventuring demands top-of-the-line handling, which is why Teryx side x sides are equipped with independent A-arms and high-performance FOX LSC Piggyback Shocks (coil-over, front and rear). Longer-travel shock units with revised suspension settings on the S model contribute to increased ride comfort and improved ground-following ability.Teryx LE shown

Reliable Braking

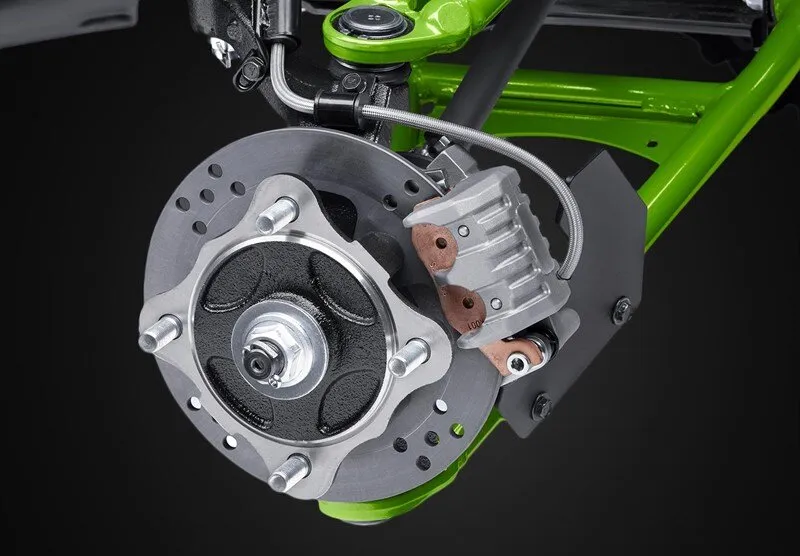

Superior stopping power keeps you in command. Front dual disc brakes gripped by twin-piston calipers work with a sealed, oil-bathed multi-disc rear brake to provide confident overall stopping power and maximum durability.

Strong & Durable

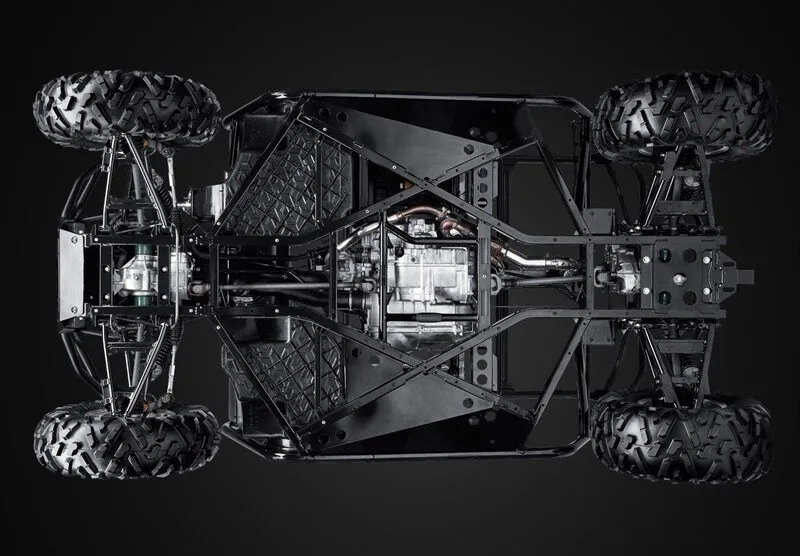

The strength and durability of Teryx side x sides start at their core with the lightweight and tough Double-X steel tube welded frame.

Wide-tread, long wheelbase chassis

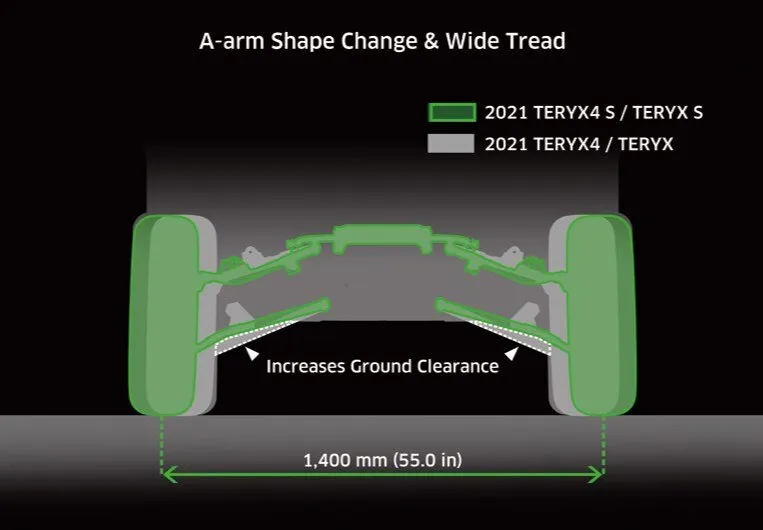

With wheels placed further apart than on standard Teryx models (thanks to a wider tread and longer wheelbase on the S-model), ground disturbances have less of an effect on the cabin, contributing to increased ride comfort and a more composed ride.

Designed for adventure, the two-passenger Teryx side x side has the edge when it comes to power and handling. Premium suspension and a high-capacity cargo bed that holds up to 272 kg mean you’re ready to tackle a day trip or a weekend excursion.

Work strong. Play strong.

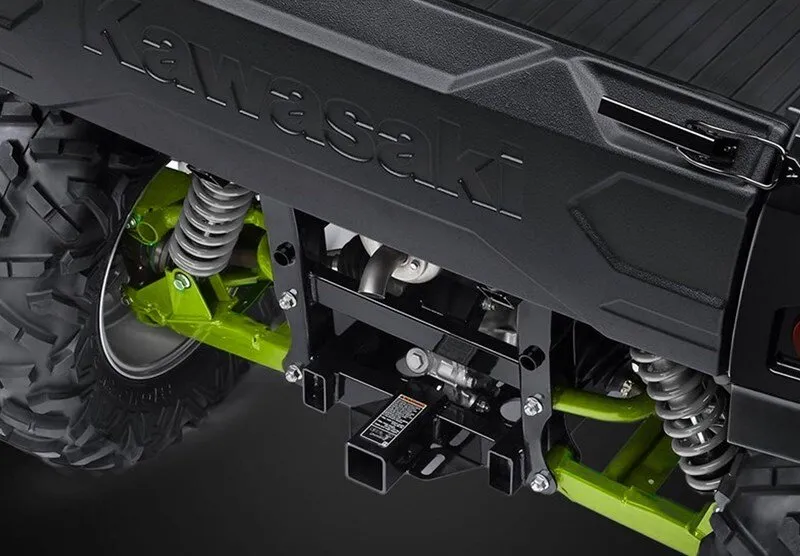

With a tilting cargo bed that holds up to 272 kg, a two-inch hitch receiver and a massive towing capacity of up to 590 kg, Teryx side x sides are the perfect vehicle whether you’re transporting cargo or taking the boat out for the day.

Pack Heavy

272 kg cargo bed capacity allows you to bring all your equipment, gear, supplies and anything else you need with you on all your outdoor adventures.

Strong & Capable

With a towing capacity of up to 590 kg, hauling heavy loads across rugged terrain is no problem.

Legendary Torque & Power

783 cc, fuel-injected, V-twin engine produces the power needed to take on challenging terrain. With strong low- and mid-range torque, it provides the muscle to conquer tough trails.

Smooth & Responsive

A Continuously Variable Transmission (CVT) with centrifugal clutch maintains belt tension for instant throttle response and improved belt life. The CVT’s centrifugal clutch enables positive belt engagement providing confidence-inspiring automatic engine braking performance on challenging descents.

Easy Manoeuvrability

High-performance FOX LSC Piggyback Shocks help improve traction and handling, while dual front disc brakes and a tight turning radius contribute to easy manoeuvrability.

Premium Suspension

Off-road adventuring demands top-of-the-line handling, which is why Teryx side x sides are equipped with independent A-arms and high-performance FOX LSC Piggyback Shocks (coil-over, front and rear). Longer-travel shock units with revised suspension settings on the S model contribute to increased ride comfort and improved ground-following ability.Teryx LE shown

Reliable Braking

Superior stopping power keeps you in command. Front dual disc brakes gripped by twin-piston calipers work with a sealed, oil-bathed multi-disc rear brake to provide confident overall stopping power and maximum durability.

Strong & Durable

The strength and durability of Teryx side x sides start at their core with the lightweight and tough Double-X steel tube welded frame.

Wide-tread, long wheelbase chassis

With wheels placed further apart than on standard Teryx models (thanks to a wider tread and longer wheelbase on the S-model), ground disturbances have less of an effect on the cabin, contributing to increased ride comfort and a more composed ride.

Equipped for More

Teryx side x sides come equipped with a host of modern convenience features to help make your weekend excursions in the woods, mountains, or even in your own backyard, more enjoyable.

Sealed Storage

Teryx side x sides boast 182 litres of behind-the-seats storage space with sealed lids that help to protect contents from exposure to moisture and dirt. An integrated center tray with convenient tie-down points provides ample space to secure easily accessible items.

Useful & Convenient

Check the speedometer, fuel gauge, clock, and much more with an easy-to-read multifunction digital display. The dash-mounted meter provides convenient vehicle information at a glance, including total distance traveled, water temperature, and low-oil pressure indicators.

Smooth & Effortless

Speed-sensitive Electric Power Steering (EPS) enhances performance by offering maximum assistance at lower speeds along with reduced effort and greater feedback at higher speeds. Drive with confidence knowing the EPS provides precise steering, smooth feel and predictable operation that will help get you where you want to go.non-current colour shown in the image.

POWER

Maximum Power43 kW {58 PS} / 6,750 rpm
Maximum Torque64 Nm {6.5 kgfm} / 5,500 rpm
Engine4-stroke 90? V-Twin
Displacement783 cc
Bore x Stroke85.0 × 69.0 mm
Compression Ratio10.7:1
Valve SystemSOHC, 4 valves per cylinder
Fuel SystemFuel injection: o36 mm x 2
IgnitionBattery & coil (transistorised ignition)
StartingElectric
CoolingLiquid-cooled
LubricationForced lubrication, wet sump
TransmissionDual range CVT with centrifugal clutch and reverse
Primary Reduction Ratio2.788 ~ 0.725 (belt converter)
Gear Ratio: Forward (High)3.279 (28/26 × 30/19 × 27/14)
Gear Ratio: Forward (Low)5.553 (31/17 × 30/19 × 27/14)
Gear Ratio: Reverse4.568 (16/12 × 18/16 × 30/19 × 27/14)
Final Reduction Ratio: Front4.375 (35/8)
Final Reduction Ratio: Rear4.400 (44/10)
Final Drive2WD/4WD, shaft
FrameDouble-X reinforcement type, tubular carbon steel
Front SuspensionDouble wishbone, FOX 2.0 LSC Piggyback Shocks, fully adjustable preload, and adjustable compression damping
Rear SuspensionDouble wishbone, FOX 2.0 LSC Piggyback Shocks, fully adjustable preload, and adjustable compression damping
Front Wheel Travel272 mm
Rear Wheel Travel254 mm
SteeringRack and pinion with Electric Power Steering
Rake6.8?
Trail38 mm
Steering Angle (L/R)37? (IN) / 32? (OUT), 37? (IN) / 32? (OUT)
Front TyresMAXXIS Bighorn 2.0 27 × 9R14 6PR
Rear TyresMAXXIS Bighorn 2.0 27 × 11R14 6PR
Front BrakesDual o200 mm discs
Front CalipersTwo-piston
Rear Brake/sEnclosed wet multi-plate
Parking BrakeEnclosed wet multi-plate
Dimensions (Lx Wx H)3,000 × 1,590 × 1,995 mm
Wheelbase2,240 mm
Road Clearance285/310 mm (standard/max preload)
Seat Height870 mm
Curb Mass**724 kg
Fuel Capacity30 litres
Tread Front / Rear1,400 mm / 1,330 mm
Turning Radius5.4 m
Cargo Bed Dimensions (Lx Wx H)700 × 1,100 × 265 (F) / 300 ® mm
Cargo Bed Capacity272 kg
Seating Capacity2
Vehicle Load Capacity499 kg
Towing Capacity590 kg
Lighting4x LED headlights
Model CodeKRF800JNFNN
