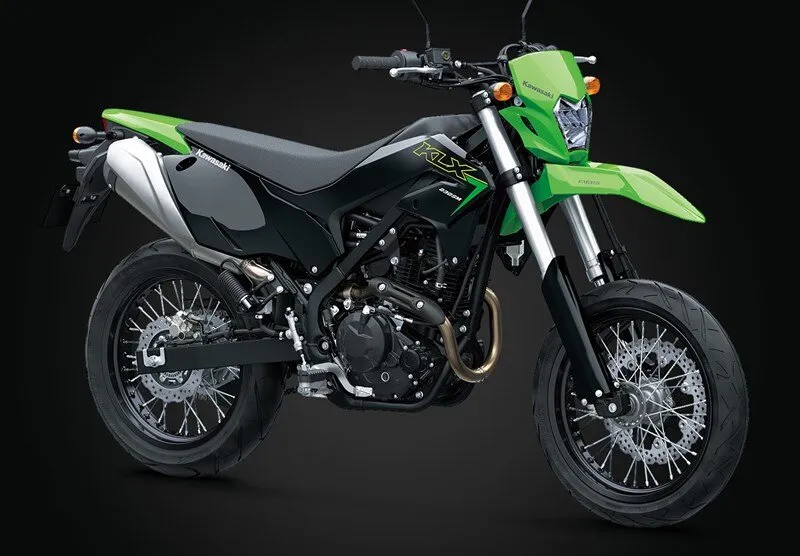

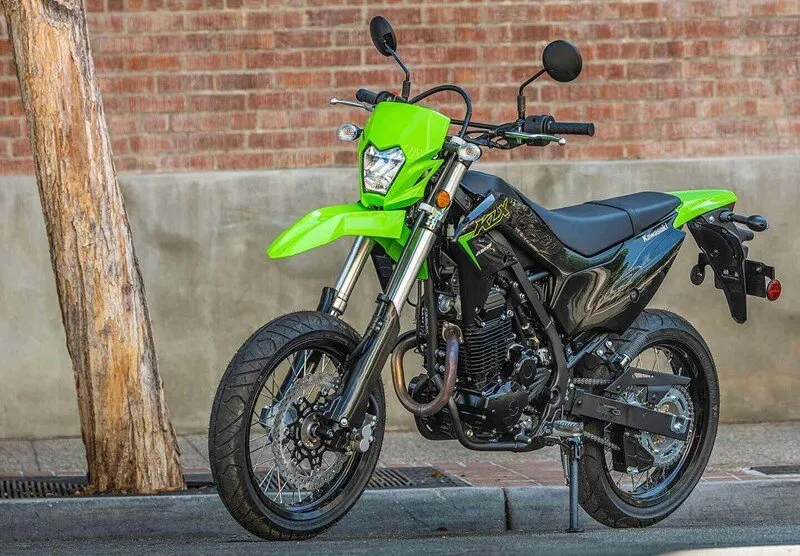

KLX230SM
LIGHTWEIGHT SUPERMOTO FOR NIMBLE STREET RIDING
Blacked Out
The blacked-out frame, engine, swingarm, handlebar, and rims make this bike a real standout on the street.
Modern Touches

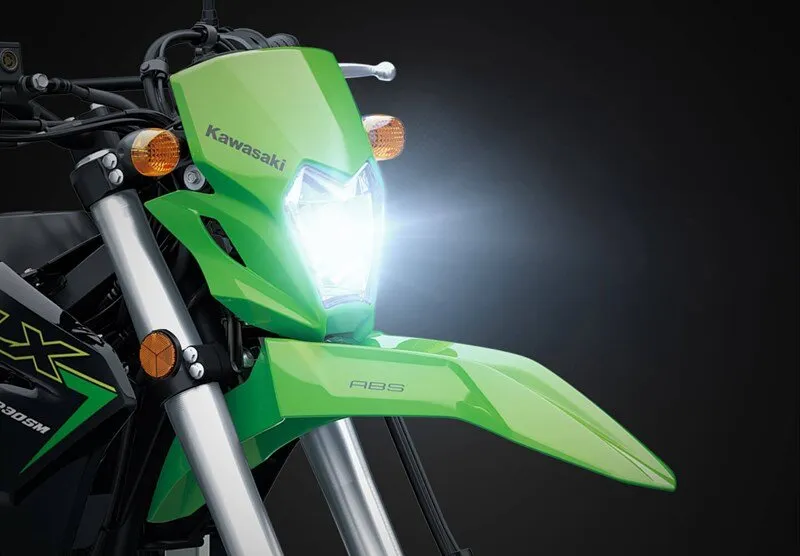

The modern LED headlight and sporty front fender, matched to the 17-inch front wheel, add to the aggressive supermoto image.
Digital Instrumentation

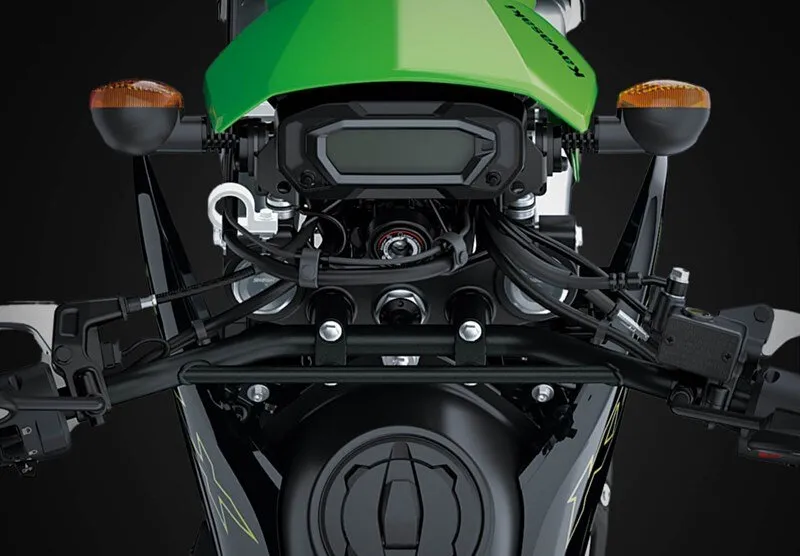

From the cockpit, an all-digital instrument panel offers at-a-glance information thanks to a large, easy-to-read LCD screen.
Power Delivery
Smooth power delivery and crisp throttle response help riders of all skill levels manoeuvre through stop-and-go city traffic.Not all colours shown available in Australia
Electric Start & Fuel Injection
Electric start offers easy starting while fuel injection offers reliability in a wide range of conditions and contributes to improved fuel economy.
Supermoto Wheels

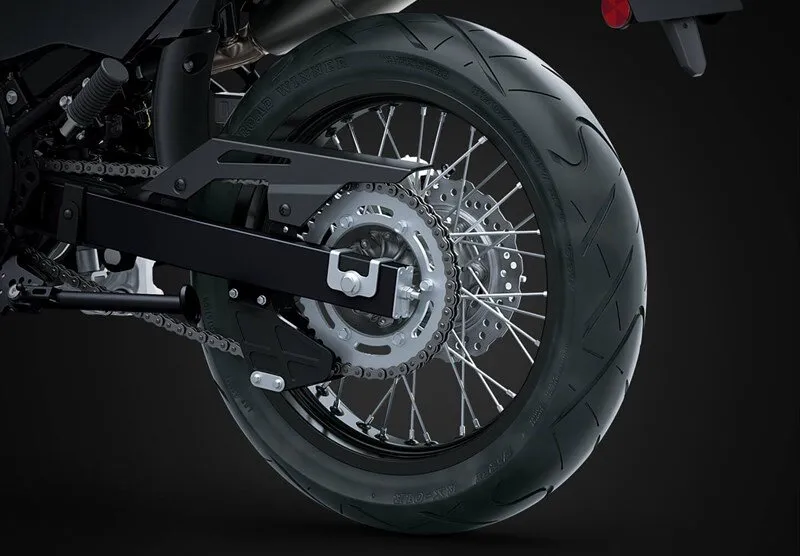

The 17-inch wheels, road tyres, and short wheelbase add agility to the quick handling package.
Long-Travel Suspension
Suspension performance offers 204 mm of travel up front and 168 mm in the rear. The o37 mm inverted front fork contributes to supermoto styling as well as front-end rigidity. The Uni Trak rear suspension provides great bump absorption and gives the bike a planted feel.
Powerful Brakes

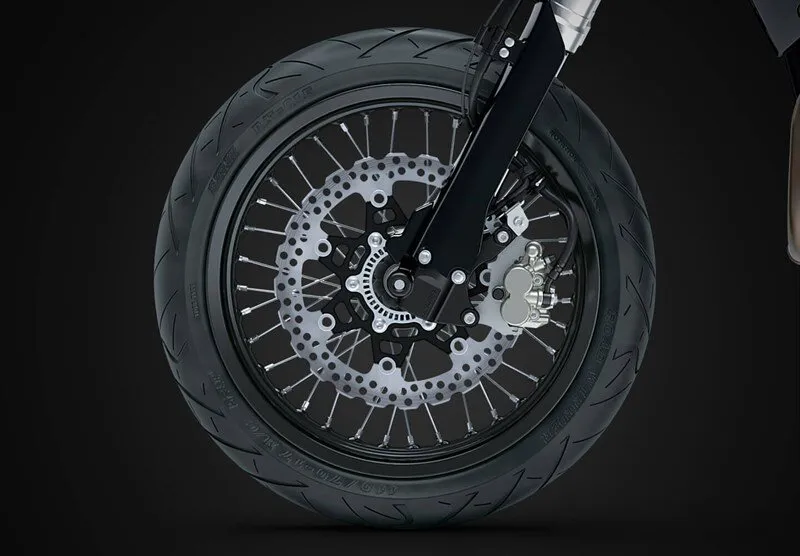

Substantial braking power is provided by a large o300 mm semi-floating petal disc and twin-piston caliper up front and a o220 mm petal disc and single-piston caliper rear brake package.
Turn up the fun on the streets with this supermoto. Every trip is an experience when you ride through the city sporting a quick-revving engine and nimble handling. Be quick to steal the scene with equal parts performance and attitude.
All attitude. No apologies.
The aggressive supermoto-inspired bodywork, finishes, and components on the KLX230SM supermoto motorcycle deliver performance and attitude.
Blacked Out
The blacked-out frame, engine, swingarm, handlebar, and rims make this bike a real standout on the street.
Modern Touches
The modern LED headlight and sporty front fender, matched to the 17-inch front wheel, add to the aggressive supermoto image.
Digital Instrumentation
From the cockpit, an all-digital instrument panel offers at-a-glance information thanks to a large, easy-to-read LCD screen.
Rev Up the Fun
The KLX230SM supermoto motorcycle is powered by a 233 cc, fuel-injected, air-cooled engine. Experience a fun and exciting spread of power tuned for low- to mid-range acceleration.
Power Delivery
Smooth power delivery and crisp throttle response help riders of all skill levels manoeuvre through stop-and-go city traffic.Not all colours shown available in Australia
Electric Start & Fuel Injection
Electric start offers easy starting while fuel injection offers reliability in a wide range of conditions and contributes to improved fuel economy.
Ready for Action
The KLX230SM supermoto motorcycle is built with a compact and purpose-built chassis that contributes to lightweight and highly manoeuvrable handling.
Supermoto Wheels
The 17-inch wheels, road tyres, and short wheelbase add agility to the quick handling package.
Long-Travel Suspension
Suspension performance offers 204 mm of travel up front and 168 mm in the rear. The o37 mm inverted front fork contributes to supermoto styling as well as front-end rigidity. The Uni Trak rear suspension provides great bump absorption and gives the bike a planted feel.
Powerful Brakes
Substantial braking power is provided by a large o300 mm semi-floating petal disc and twin-piston caliper up front and a o220 mm petal disc and single-piston caliper rear brake package.
Make Comfort a Priority

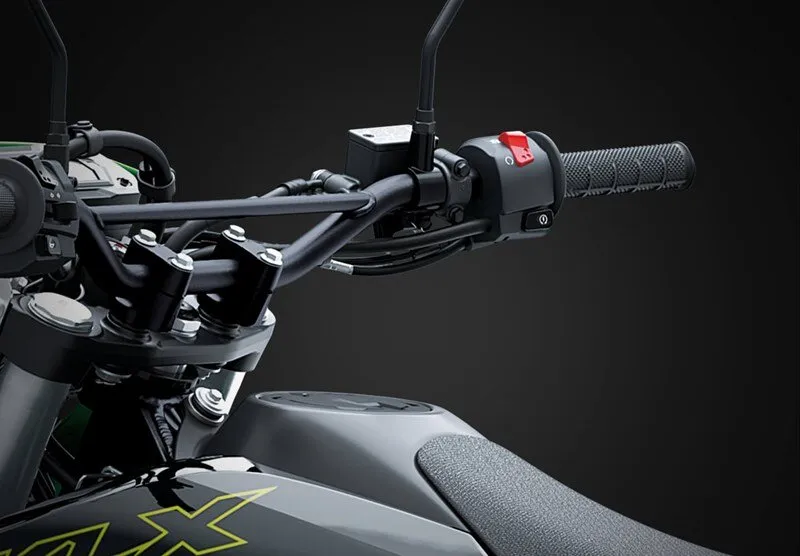

An upright and relaxed riding position makes it comfortable to ride the KLX230SM supermoto motorcycle. Rider-friendly ergonomics complemented by a thick-padded seat, rubber-dampened footpegs, and a 845 mm seat height make the KLX230SM one of the best options for tackling any urban jungle.
Ride Comfort
Rider-friendly ergonomics are complemented by a thick-padded seat and rubber-dampened footpegs to increase comfort when navigating city streets.
Low Seat Height
A low 845 mm seat height allows riders to comfortably reach the ground at stops for increased confidence.Not all colours shown available in Australia
POWER
| Maximum Power | 14.0 kW {19 PS} / 7,600 rpm |
|---|---|
| Maximum Torque | 19.8 Nm {2.0 kgfm} / 6,100 rpm |
| Engine | 4-stroke Single |
| Displacement | 233 cc |
| Bore x Stroke | 67.0 × 66.0 mm |
| Compression Ratio | 9.4:1 |
| Valve System | SOHC, 2 valves |
| Fuel System | Fuel injection: o32 mm x 1 |
| Ignition | Digital |
| Starting | Electric |
| Cooling | Air-cooled |
| Lubrication | Forced lubrication, wet sump |
| Transmission | 6-speed, return |
| Primary Reduction Ratio | 2.871 (89/31) |
| Gear Ratio: 1st | 3.000 (39/13) |
| Gear Ratio: 2nd | 2.067 (31/15) |
| Gear Ratio: 3rd | 1.556 (28/18) |
| Gear Ratio: 4th | 1.261 (29/23) |
| Gear Ratio: 5th | 1.040 (26/25) |
| Gear Ratio: 6th | 0.852 (23/27) |
| Final Reduction Ratio | 3.071 (43/14) |
| Clutch | Wet multi-disc, manual |
| Final Drive | Chain |
| Frame | Perimeter, high-tensile steel |
| Front Suspension | o37 mm inverted fork |
| Rear Suspension | New Uni Trak with adjustable spring preload |
| Front Wheel Travel | 204 mm |
| Rear Wheel Travel | 168 mm |
| Rake | 26.5? |
| Trail | 86 mm |
| Steering Angle (L/R) | 45? / 45? |
| Front Tyre | 110/70-17M/C 54P |
| Rear Tyre | 120/70-17M/C 58P |
| Front Brake/s | o300 mm semi-floating petal disc |
| Front Caliper/s | Twin-piston |
| Rear Brake | o220 mm petal disc |
| Rear Caliper | Single-piston |
| Dimensions (Lx Wx H) | 2,050 × 835 × 1,120 mm |
| Wheelbase | 1,375 mm |
| Road Clearance | 230 mm |
| Seat Height | 845 mm |
| Curb Mass | 135 kg |
| Fuel Capacity | 7.5 litres |
| Model Code | KLX230RPFNN |
