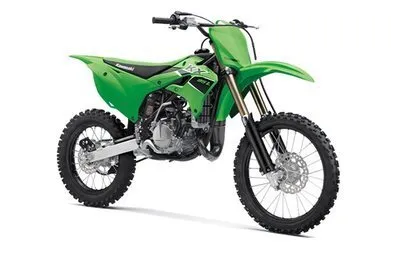

KX85 L
Kawasaki Motocross

KX85 L

THE BIKE THAT BUILDS CHAMPIONS

Colours

Enquire for price
Talk to sales(03) 5133 8060
Authorised serviceKawasaki service agent

Stronger Transmission

The all-new 6-speed transmission of the KX112 also benefits the KX85.

Exceptional Control

o36 mm inverted cartridge fork features adjustable compression damping, enabling excellent tuning throughout the impressive 275 mm (10.8 in) of travel. The Uni Trak rear suspension is just as versatile with a fully-adjustable KYB shock, also featuring 275 mm (10.8 in) of travel.

Revised Shroud Design

Shrouds designed to accommodate a wider range of riders make it easier for riders to find a good fit on the bike. The new shroud design also directs air to the radiator more efficiently, contributing to cooling performance.Non-current colour shown

Adjustable Handlebar Position

KX85 motorcycle grows with your young racer thanks to the ERGO-FIT system. Featuring six-position adjustable handlebar mounts, ERGO-FIT enables riders to set their ideal ride position.

The KX85 motorcycles brings Kawasaki’s proven performance to the amateur ranks. Proportionate power of the 84 cc engine and race-ready technology grant young racers the championship-winning advantage they need to sharpen their skills.

Proven Performance

High-performance 84 cc two-stroke engine produces crisp, responsive power and offers proven durability to finish each ride with confidence. A close ratio six-speed transmission and manual clutch allow aspiring racers to hone their shifting skills and get maximum performance out of the KX85 motorcycle.

Stronger Transmission

The all-new 6-speed transmission of the KX112 also benefits the KX85.

Exceptional Control

o36 mm inverted cartridge fork features adjustable compression damping, enabling excellent tuning throughout the impressive 275 mm (10.8 in) of travel. The Uni Trak rear suspension is just as versatile with a fully-adjustable KYB shock, also featuring 275 mm (10.8 in) of travel.

Built to Fit

Feeling at one with your machine is extremely important for speed and control, especially for aspiring racers learning how to get the most from themselves and their bikes. Similar to Kawasaki’s full-size motocrossers, the KX85’s bodywork forms a slim ergonomics package that facilitates rider movement, while contributing to strong factory looks.

Revised Shroud Design

Shrouds designed to accommodate a wider range of riders make it easier for riders to find a good fit on the bike. The new shroud design also directs air to the radiator more efficiently, contributing to cooling performance.Non-current colour shown

Adjustable Handlebar Position

KX85 motorcycle grows with your young racer thanks to the ERGO-FIT system. Featuring six-position adjustable handlebar mounts, ERGO-FIT enables riders to set their ideal ride position.

POWER

Engine2-stroke Single with KIPS
Displacement84 cc
Bore x Stroke48.5 × 45.8 mm
Compression Ratio10.9:1 (low speed), 9.0:1 (high speed)
InductionPiston reed valve
Fuel SystemCarburettor: Keihin PWK28
IgnitionDigital-CDI
StartingPrimary kick
CoolingLiquid-cooled
LubricationPre-mix (32:1)
Transmission6-speed, return
Primary Reduction Ratio3.400 (68/20)
Gear Ratio: 1st2.538 (33/13)
Gear Ratio: 2nd1.875 (30/16)
Gear Ratio: 3rd1.500 (27/18)
Gear Ratio: 4th1.250 (25/20)
Gear Ratio: 5th1.090 (24/22)
Gear Ratio: 6th0.956 (22/23)
Final Reduction Ratio3.923 (51/13)
ClutchWet multi-disc, manual
Final DriveChain
FramePerimeter, high-tensile steel
Front Suspensiono36 mm inverted fork with adjustable compression damping
Rear SuspensionUni Trak with adjustable compression and rebound damping and adjustable spring preload
Front Wheel Travel275 mm
Rear Wheel Travel275 mm
Rake29.0?
Trail108 mm
Steering Angle (L/R)45? / 45?
Front Tyre70/100-19 42M
Rear Tyre90/100-16 51M
Front Brake/so220 mm petal disc
Front Caliper/sDual-piston
Rear Brakeo184 mm petal disc
Rear CaliperSingle-piston
Dimensions (Lx Wx H)1,920 × 765 × 1,150 mm
Wheelbase1,310 mm
Road Clearance330 mm
Seat Height870 mm
Curb Mass77.0 kg
Mass without Fuel73.3 kg
Fuel Capacity5.0 litres
Model CodeKX85DPFNN
