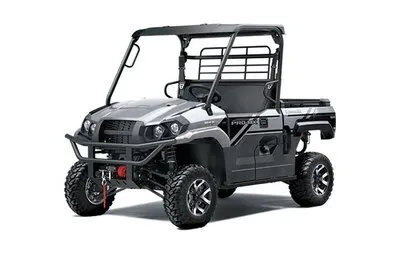

MULE PRO-MX SE
True Mid-Size Muscle
Colours

Responsive Power
A powerful engine delivers class-leading torque, making the MULE PRO-MX side x side fun to drive with strong low- to mid-range acceleration and higher speed efficiency.

Smooth Delivery
Continuously Variable Transmission (CVT) with a centrifugal clutch delivers smooth acceleration, instant throttle response and dependable engine braking.

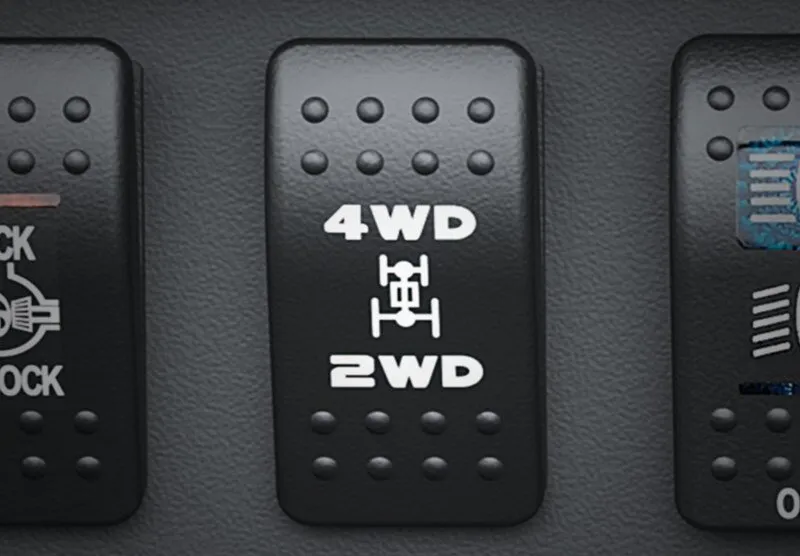

Fast & Easy
Convenient dash-mounted final drive switches let you easily change from 2WD, 4WD, or 4WD with rear differential lock to easily select the right traction mode to match terrain conditions.

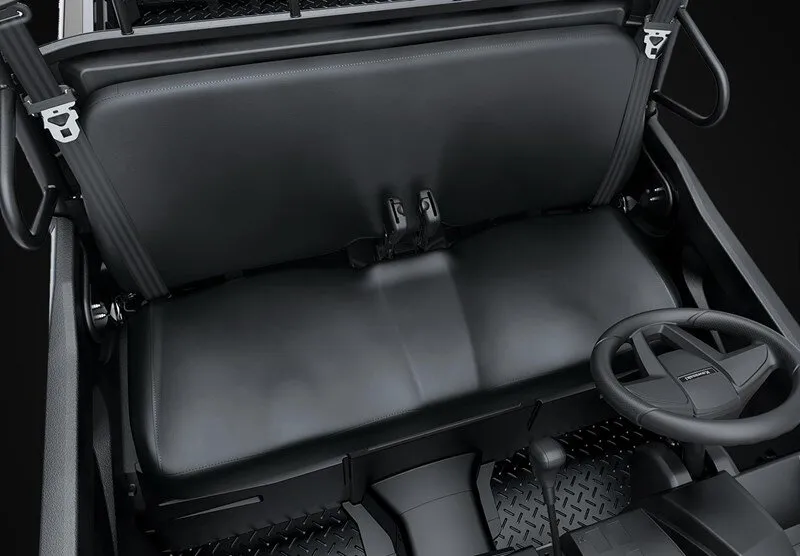

Ample Room
Plush contoured bench seat with anti-cinch, three-point seatbelts keep riders comfortably and securely fastened even in rough terrain.

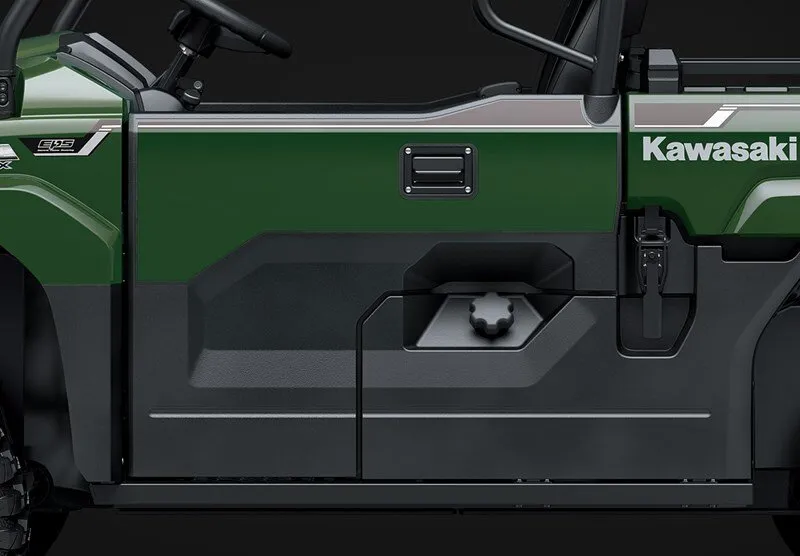

Protection from Elements
Integrated doors help you keep clean and dry from outside elements.

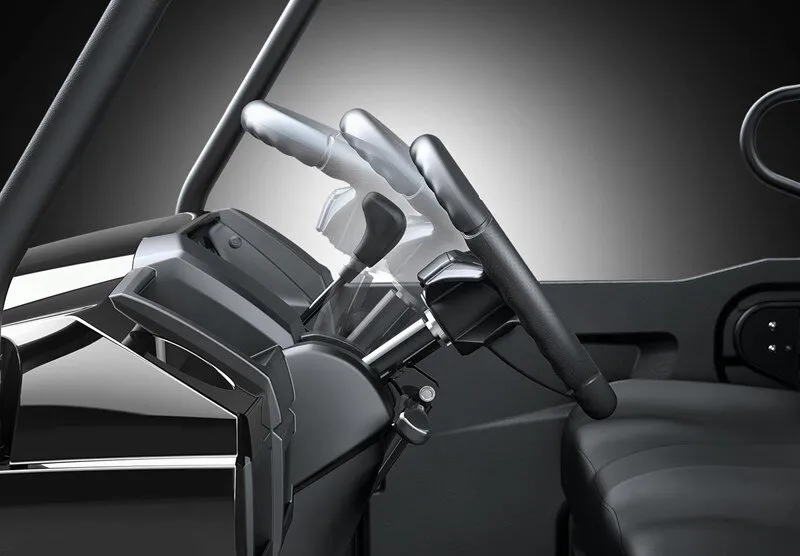

STEERING WHEEL
Tilt-adjustable steering wheel allows you to set its position to suit your preference.

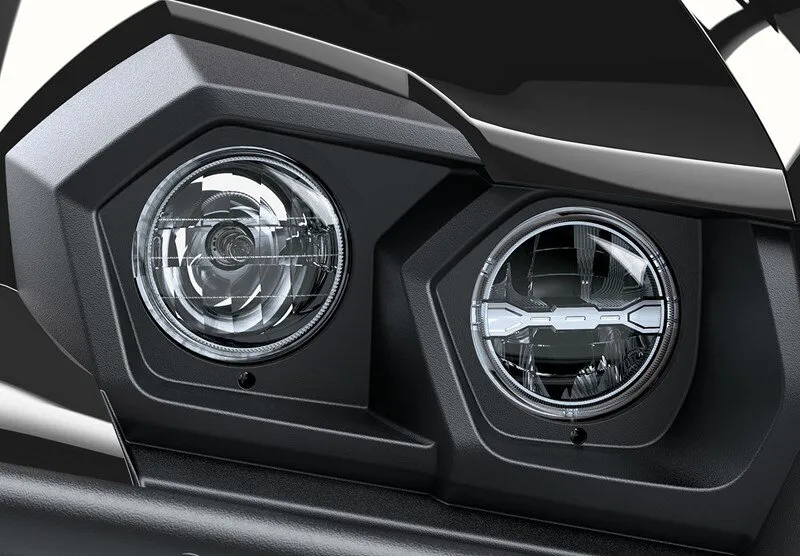

High Visibility
Bright, compact 35 W outer halogen headlights are complemented by auxiliary LED inner headlights (19.2/9.6 W). The quadruple headlights cut a wide, bright path through the dark to let you see and be seen when driving at night.
Mid-size Kawasaki MULE PRO-MX side x sides offer a comfortable fit for two passengers with the muscle to cover more ground in less time, and the versatility and capability to have some fun when the work is done.

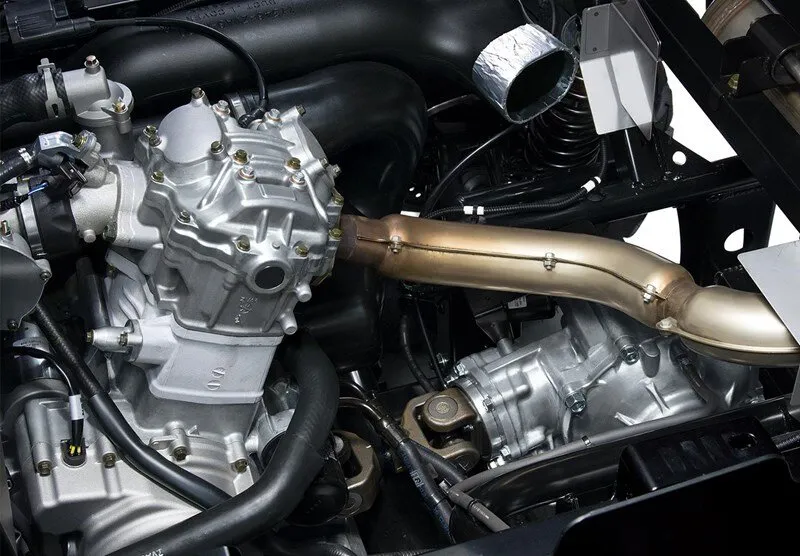

Strong & Durable
Power through your workday with the 695 cc fuel-injected engine of the MULE PRO-MX side x side. Relish the challenge of rugged and hilly terrain with class-leading torque and responsive power.
Responsive Power
A powerful engine delivers class-leading torque, making the MULE PRO-MX side x side fun to drive with strong low- to mid-range acceleration and higher speed efficiency.
Smooth Delivery
Continuously Variable Transmission (CVT) with a centrifugal clutch delivers smooth acceleration, instant throttle response and dependable engine braking.
Fast & Easy
Convenient dash-mounted final drive switches let you easily change from 2WD, 4WD, or 4WD with rear differential lock to easily select the right traction mode to match terrain conditions.
Spacious & Refined
Drive comfortably in a roomy cabin that offers generous leg, shoulder, and head clearance, along with refined ergonomics.
Ample Room
Plush contoured bench seat with anti-cinch, three-point seatbelts keep riders comfortably and securely fastened even in rough terrain.
Protection from Elements
Integrated doors help you keep clean and dry from outside elements.
STEERING WHEEL
Tilt-adjustable steering wheel allows you to set its position to suit your preference.
High Visibility
Bright, compact 35 W outer halogen headlights are complemented by auxiliary LED inner headlights (19.2/9.6 W). The quadruple headlights cut a wide, bright path through the dark to let you see and be seen when driving at night.
Useful Amenities
MULE PRO-MX side x sides come standard with convenience features that allow you to work easier and accomplish more in less time.
Plenty of Storeroom
9.1-litre under-hood storage, 5.3-litre under-seat storage, a lockable glovebox, pockets, trays and drink holders provide convenient item storage.
Effortless Shifting
Inline transmission shifter makes shifting easy and effortless.
Tilting bed
Gas-assisted tilting cargo bed with integrated features like divider slots, six tie-down hooks and bed rails for quick and easy installation of KQR accessory mounts.non-current colour shown in the image.
Stay Prepared
Keep accessories and personal items powered with the dash mounted 12-volt DC power outlet.
Quick & Helpful
Digital multi-function LCD dash display is easy to read and provides useful vehicle information when you need it.
Full-size Strength
Optimised mid-size chassis offers sure-footed and agile handling performance along with rugged capability.
Independent Suspension
Double wishbone independent suspension with twin-tube shocks absorb bumps to deliver a comfortable ride and allows each wheel to confidently maintain traction over rugged terrain.
Agile & Manoeuvrable
Plush independent suspension and a tight turning radius enable enhanced manoeuvrability.
Drive with Confidence
Wide, sure-footed stance keeps you planted while taking tight turns. The strong frame, designed to flex, helps maintain traction and ride comfort in rough technical terrain.non-current colour shown in the image.
Strong & Capable
| Maximum Power | 33 kW {45 PS} / 6,000 rpm |
|---|---|
| Maximum Torque | 58 Nm {5.9 kgfm} / 5,000 rpm |
| Engine | 4-stroke Single |
| Displacement | 695 cc |
| Bore x Stroke | 102.0 × 85.0 mm |
| Compression Ratio | 10.3:1 |
| Valve System | SOHC, 4 valves per cylinder |
| Fuel System | Fuel injection: o44 mm x 1 |
| Ignition | Battery & coil |
| Starting | Electric |
| Lubrication | Forced lubrication, wet sump |
| Transmission | Dual-range (high/low) CVT with centrifugal clutch and reverse |
| Primary Reduction Ratio | 0.791 ~ 2.451 |
| Gear Ratio: Forward (High) | 3.486 (27/25 × 46/19 × 24/18) |
| Gear Ratio: Forward (Low) | 6.646 (35/17 × 46/19 × 24/18) |
| Gear Ratio: Reverse | 5.311 (39/26 × 34/31 × 46/19 × 24/18) |
| Final Reduction Ratio: Front | 4.375 (35/8) |
| Final Reduction Ratio: Rear | 4.375 (35/8) |
| Final Drive | 2WD/4WD, shaft, dual-mode differential |
| Frame | Ladder type, tubular steel |
| Front Suspension | Double wishbone |
| Rear Suspension | Double wishbone |
| Front Wheel Travel | 218 mm |
| Rear Wheel Travel | 232 mm |
| Steering | Rack and pinion with Electric Power Steering |
| Rake | 5.0? |
| Trail | - |
| Steering Angle (L/R) | 40? (IN) / 30? (OUT), 40? (IN) / 30? (OUT) |
| Front Tyres | 25 × 8.00R12 |
| Rear Tyres | 25 × 10.00R12 |
| Front Brakes | Dual o212 mm discs |
| Front Calipers | Two-piston |
| Rear Brake/s | Dual o212 mm discs |
| Rear Caliper/s | Single-piston |
| Parking Brake | Dual discs (mechanical) |
| Dimensions (Lx Wx H) | 2,830 × 1,525 × 1,925 mm |
| Wheelbase | 2,005 mm |
| Road Clearance | 270 mm |
| Seat Height | 850 mm |
| Curb Mass** | 736 kg |
| Fuel Capacity | 36 litres |
| Tread Front / Rear | 1,322 mm / 1,285 mm |
| Turning Radius | 4.2 m |
| Cargo Bed Dimensions (Lx Wx H) | 847 × 1,119 × 232 mm |
| Cargo Bed Capacity | 317 kg |
| Seating Capacity | 2 |
| Vehicle Load Capacity | 544 kg |
| Towing Capacity | 680 kg |
| Lighting | 2x halogen, 2x LED headlights |
| Model Code | KAF700FPFNN |
