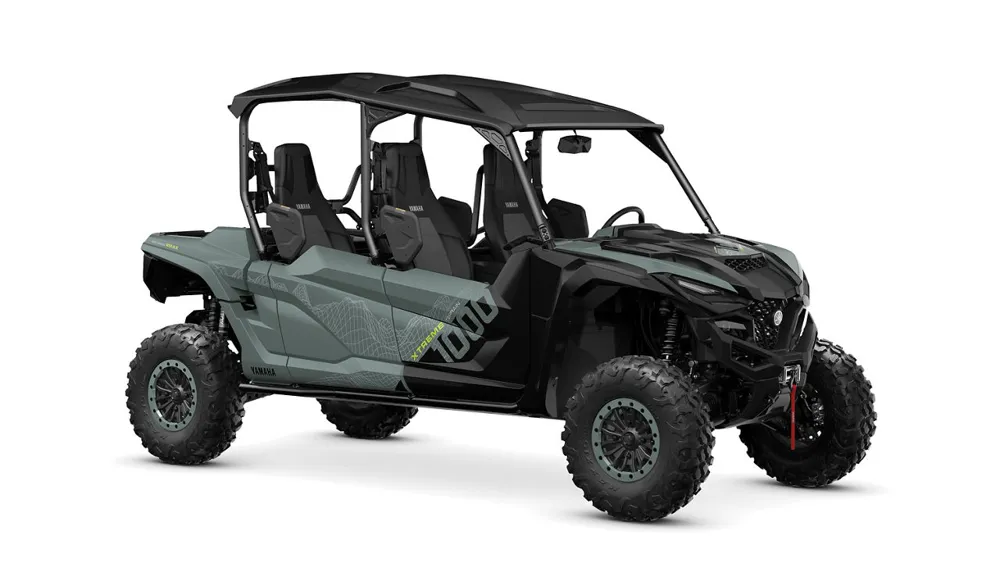

2026 Wolverine RMAX4 1000 XT-R
4 Seater Adventure
2026 4 Seater Adventure
The Wolverine RMAX4 1000 XT-R takes adventure to the next level with a larger chassis, extended wheelbase and lifted, aggressive stance offering ample room for four adult passengers, expanded storage, and a more planted feel in rocky or rutted conditions.
Built for serious off-road adventure, it delivers class-leading ground clearance and suspension travel for tackling challenging terrain with confidence. The XT-R edition enhances both performance and style with rugged 14-inch beadlock wheels, heavy-duty WARN® winch and automotive-style painted bodywork with distinctive XT-R graphics. Inside, riders enjoy premium colour-matched cut-and-sew seats that blend comfort and durability, making the RMAX4 1000 XT-R the ultimate combination of rugged performance and refined style.
| Code | YXF1000P |
|---|---|
| Length | 3830 |
| Width | 1694 |
| Wheelbase | 3000 |
| Clearance | 350 |
| Turn Radius | 5790 |
| Height | 2100 |
| Weight | 1050 |
| Engine | Liquid-cooled, 4-stroke, DOHC, parallel twin |
| Displacement | 999.0 |
| Bore | 93.0 × 73.5 |
| Spec Config | ATV / SxS |
| Compression | 11.2 : 1 |
| Lubrication | Dry sump |
| Fuel | Fuel Injection |
| Ignition | TCI |
| Starter | Electric |
| Fuel Tank | 34.8 |
| Final Trans | On-Command 4-way locking differential; Turf Mode, 2WD, 4WD, full diff-lock 4WD |
| Transmission | Ultramatic® V-belt with all engine braking; L, H, N, R |
| Frame | Steel tube |
| Suspension Front | Independent double wishbone w/anti-sway bar, FOX QS3 piggyback shocks; 360mm travel |
| Suspension Rear | Independent double wishbone w/anti-sway bar, FOX QS3 piggyback shocks; 430mm travel |
| Brakes Front | Hydraulic dual discs |
| Brakes Rear | Hydraulic dual discs |
| Tyres Front | 30 × 10.00R-14 Maxxis Carnivore |
| Tyres Rear | 30 × 10.00R-14 Maxxis Carnivore |
