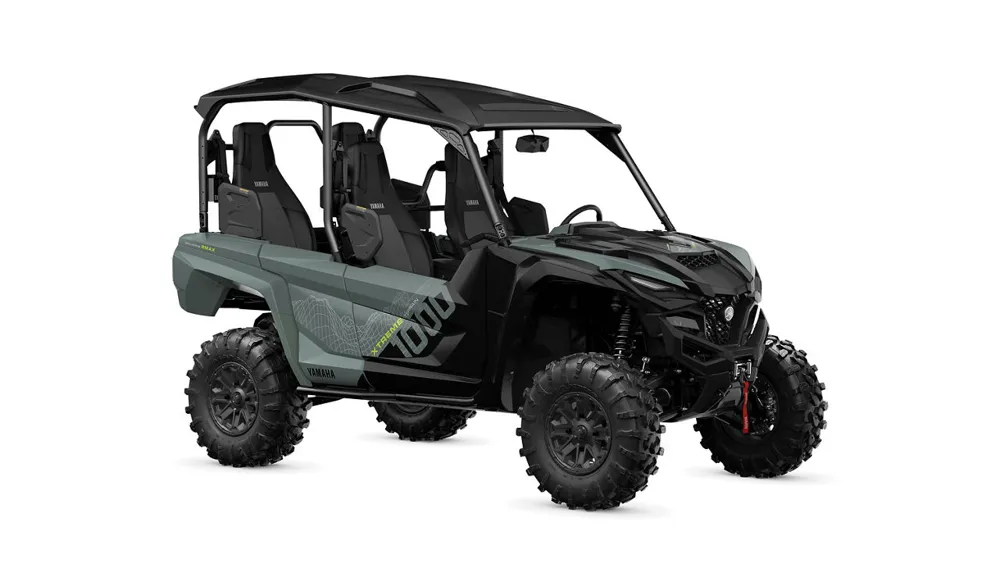

2026 Wolverine RMAX4 1000 XT-R Compact
4 Seater Compact
2026 4 Seater Compact
The Wolverine RMAX4 1000 XT-R Compact conquers the toughest terrain with comfort for four.
Smooth power is produced by the class-leading 999cc parallel-twin engine and selectable push-button D-Mode control with three power delivery settings, while the compact chassis balances trail-taming agility with plenty of room for extra passengers and gear.
The XT-R package adds colour-matched 14-inch aluminum beadlock wheels wrapped in Maxxis® Carnage tyres, advanced FOX® 2.0 QS3 adjustable suspension, heavy-duty WARN® winch, high-quality painted bodywork, XT-R graphics, and premium cut-and-sew comfort seats.
Add additional automotive-style features like Yamaha’s Adventure Pro System, full-color display and a premium MTX audio system, and the RMAX4 1000 XT-R Compact is ready to take you on the ultimate adventure in complete comfort.
| Code | YXF1000P |
|---|---|
| Length | 3255 |
| Width | 1677 |
| Wheelbase | 2290 |
| Clearance | 310 |
| Turn Radius | 5995 |
| Height | 2064 |
| Weight | 936 |
| Engine | Liquid-cooled, 4-stroke, DOHC, parallel twin |
| Displacement | 999.0 |
| Bore | 93.0 × 73.5 |
| Spec Config | ATV / SxS |
| Compression | 11.2 : 1 |
| Lubrication | Dry sump |
| Fuel | Fuel Injection |
| Ignition | TCI |
| Starter | Electric |
| Fuel Tank | 34.8 |
| Final Trans | On-Command 4-way locking differential; Turf Mode, 2WD, 4WD, full diff-lock 4WD |
| Transmission | Ultramatic® V-belt, On-Command® 2WD, 4WD, 4WD with Diff-lock |
| Frame | Steel tube |
| Suspension Front | Independent double wishbone w/anti-sway bar, FOX QS3 piggyback shocks; 360mm travel |
| Suspension Rear | Independent double wishbone w/anti-sway bar, FOX QS3 piggyback shocks; 338mm travel |
| Brakes Front | Hydraulic dual discs |
| Brakes Rear | Hydraulic dual discs |
| Tyres Front | 29 × 9.00R-14 Maxxis Carnage |
| Tyres Rear | 29 × 11.00R-14 Maxxis Carnage |
