Yamaha Road - Scooter

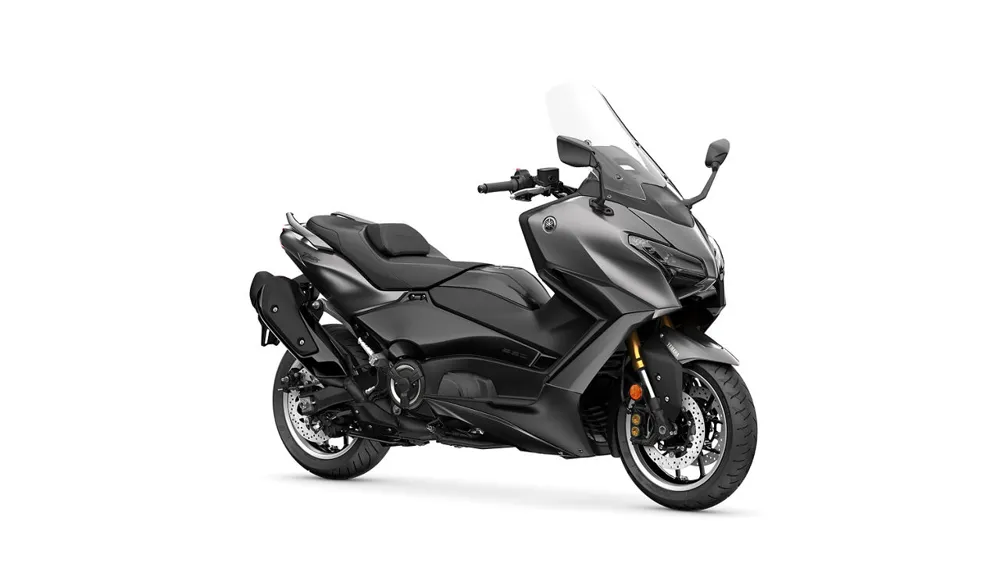

2026 TMAX Tech MAX
Nothing but the MAX
Enquire for price
Talk to sales(03) 5133 8060
Authorised serviceYamaha service agent
2026 Nothing but the MAX
Its powerful 560cc engine and refined automatic transmission make this Yamaha’s fastest and smoothest Sport Scooter.
The motorcycle-type aluminium chassis and adjustable suspension provide precision handling.
And for supreme comfort the TMAX Tech MAX comes with a luxury heated seat, heated grips and an electronically adjustable screen.
| Code | XP560A |
|---|---|
| Length | 2195 |
| Width | 780 |
| Seat Height | 800 |
| Wheelbase | 1575 |
| Clearance | 135 |
| Height | 1415 / 1525 |
| Weight | 221 |
| Lam | 1 |
| Engine | Liquid-cooled, 4-stroke, DOHC, 4-valve |
| Displacement | 562.0 |
| Bore | 70.0 × 73.0 |
| Spec Config | Motorcycle |
| Compression | 10.9 : 1 |
| Lubrication | Dry Sump |
| Fuel | Fuel Injection |
| Ignition | TCI |
| Starter | Electric |
| Fuel Tank | 15.0 |
| Oil | 3.5 |
| Final Trans | Belt |
| Transmission | V-Belt Automatic |
| Frame | Aluminium CF die-cast |
| Suspension Front | Telescopic forks, 120mm travel |
| Suspension Rear | Swingarm, 117mm travel |
| Brakes Front | Hydraulic dual discs, 267mm, ABS |
| Brakes Rear | Hydraulic single disc, 282mm, ABS |
| Tyres Front | 120/70R15M/C 56H Tubeless |
| Tyres Rear | 160/60R15M/C 67H Tubeless |
