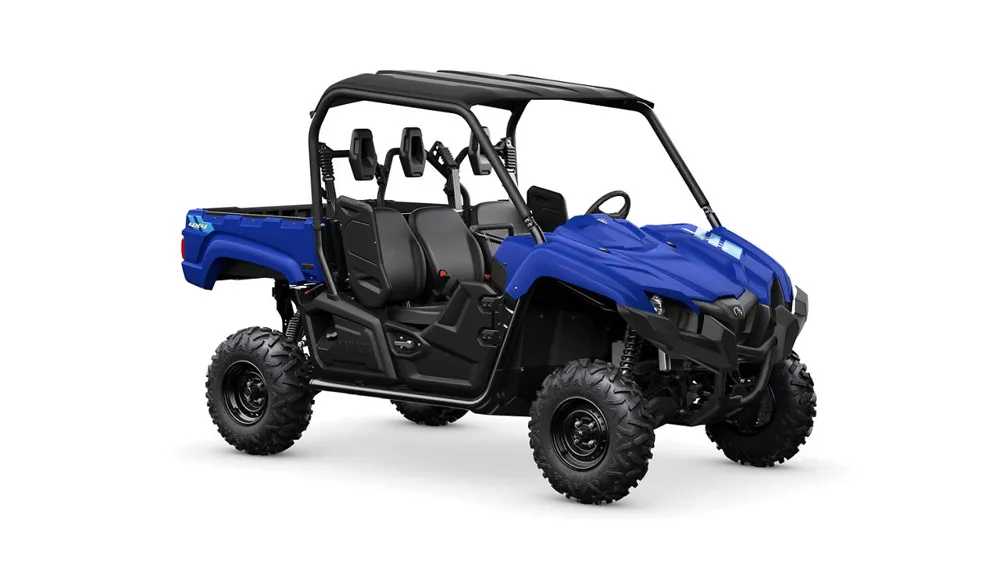

2026 Viking
Multi-purpose 3 Seater
2026 Multi-purpose 3 Seater
Viking offers workplace solutions, you need to access remote areas with two colleagues? Viking is your best option. Viking is equipped with our unique Ultramatic On Command drive system with 2WD, 4WD and 4WD Diff Lock and downhill engine braking plus a torquey donk that pulls like a mule.
Viking enhancements include automotive-style two-stage door latches and a parking brake warning buzzer. Noise and vibration reduction features include rubber damper plates, a rigid chassis, sound dampening materials and an engine-mounted torque rod for a more relaxing ride at any engine RPM. A reinforced rear steel cargo bed now incorporates mounting points on the bed rails and a rubber cargo bed mat further reduces sound and vibration.
Note: Images show optional accessories fitted.
| Code | YXM700P |
|---|---|
| Length | 3100 |
| Width | 1570 |
| Seat Height | 793 |
| Wheelbase | 2135 |
| Clearance | 300 |
| Turn Radius | 4500 |
| Height | 1925 |
| Weight | 649 |
| Dry Weight | 615 |
| Engine | Liquid-cooled, 4-stroke, SOHC, 4 valve, single cylinder |
| Displacement | 686.0 |
| Bore | 102.0 × 84.0 |
| Spec Config | ATV / SxS |
| Compression | 10.0 : 1 |
| Lubrication | Wet Sump |
| Fuel | Fuel Injection |
| Ignition | TCI |
| Starter | Electric |
| Fuel Tank | 36.7 |
| Oil | 2.6 |
| Final Trans | Shaft |
| Transmission | Ultramatic® V-belt with all-wheel engine braking; H, L, N, R, P |
| Frame | Steel tube |
| Suspension Front | Independent double wishbone, 205mm travel |
| Suspension Rear | Independent double wishbone, 205mm travel |
| Brakes Front | Hydraulic dual discs |
| Brakes Rear | Hydraulic dual discs |
| Tyres Front | 25 × 8-12NHS |
| Tyres Rear | 25 × 10-12NHS |
